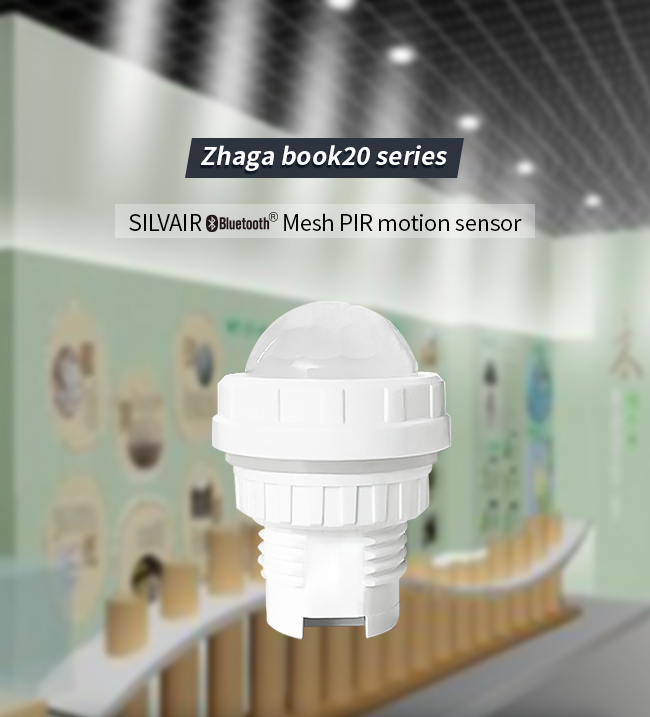

Model name: HNB132PIR Zhaga book20 SILVAIR bluetooth mesh
PIR motion sensor
Quick detail of bluetooth mesh pir motion sensor HNB132PIR
1, Input voltage: 12-24V DC.
2, Stand-by current consumption: max. 20mA.
3, *0-10V dimming, task tuning (10-100%).
4, Bluetooth operation frequency 2.4GHz-2.483GHz.
5, Bluetooth transmission power: 4dBm.
6, Bluetooth transmission range: 10-30m (Typical indoor).
Description of bluetooth mesh motion detector
HNB132PIR is a 0-10v dimming, constant lux, and bluetooth mesh function, by SILVAIR bluetooth app control, standard Zhaga book20 socket.
Specification of led PIR sensor
| Type: | indoor lighting |
| IP rating: | IP65 |

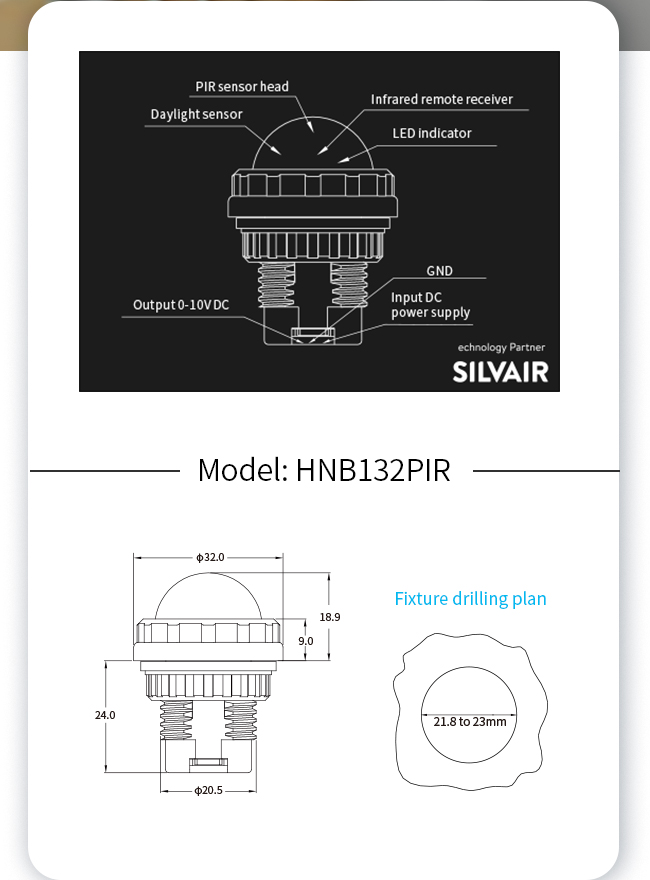

| Size: | ∅32mm |
| Input current: | ≥20mA |
| Mounting height (high bay): | max.4.5m |
| Input voltage: | 12V-24V DC |
| Output signal: | 0-10v dimming |
| Operation environment: | -10°C~+50°C |
| Zhaga book20 series |
| No. | Series | Controll | Type | Model name | Function |
| 1 | Zhaga book20 | Single light | PIR+Daylight sensor | HNS132PIR/HNS132CLPIR | 12V DC input, 0-10V output, tri-level dimming and daylight monitoring / constant luxfunction by remote control setting |
| 2 | Daylight sensor | HNP132CL | 12V DC input, 0-10V output, constant luxfunction by remote control setting |
| 3 | DALI-2 D4i | Daylight sensor+DALI | HNP132CLDL | 9.5-22.5V DC, DALI output, constant lux function, remote control and DALI BUS setting |
| 4 | PIR+Daylight sensor+DALI | HNS132CLDLPIR | 9.5-22.5V DC, DALI output, tri-level dimming and constant lux function, remote control and DALI BUS setting |
| 5 | PIR+DALI | HNS132DL | 9.5-22.5V DC, DALI output, DALI BUS setting input device |
| 6 | PIR+Daylight sensor+DALI | HNS132DLPIR | 9.5-22.5V DC, DALI output, tri-level dimming and daylight monitoring function, remote control and DALI BUS setting |
| 7 | SILVAIR bluetooth mesh | BLE+PIR+Daylight | HNB132PIR | 12V DC input, 0-10V output, tri-level dimming and constant lux function by silvair bluetooth mesh APP control |
| 8 | SILVAIR bluetooth mesh+DALI-2 D4i | BLE+DALI+PIR+Daylight | HNB132DLPIR | 9.5V-22.5V DC input, DALI output,tri-level dimming and daylight harvest, bluetooth mesh function by silvair bluetooth mesh APP control |
| 9 | DALI Bluetooth mesh converter | HNB132DL | 9.5V-22.5V DC input, DALI output, bluetooth mesh function by silvair bluetooth mesh APP control |
FAQ:
Q1: Can I take samples?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks in stock, and 3-4 weeks without stock.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Product Tags:
|
|
HNB132PIR Zhaga Book 20 SILVAIR Bluetooth Mesh App Control PIR Motion Sensor Images
|
