Remote Control PIR Motion Sensor Zhaga Book20 Constant Lux Sensor

Name: Remote Control PIR Motion Sensor Zhaga Book20 Constant Lux Sensor
Brand: Hynall
Price: 1 USD

Remote Control PIR Motion Sensor Zhaga Book20 Constant Lux Sensor Manufactures

Brand Name : Hynall

Model Number : HNS132CLPIR

Certification : RED, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 50pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50,000pcs / month

Delivery Time : 4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 12-24V DC

Setting : IR remote control

Function : constant lux,0-10v dimming

Output signal : 0-10v dimming

Input current : max. 8mA

Operation temperature : -10 °c ~ + 50 °c

Contact Now

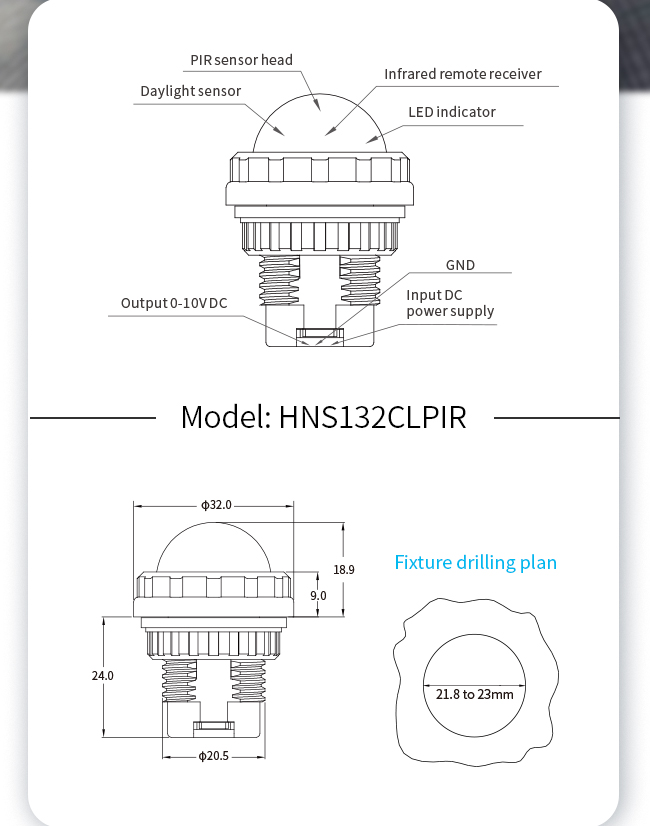

Model name: HNS132CLPIR Zhaga book20 constant lux PIR motion sensor

Quick detail of PIR and constant lux sensor HNS132CLPIR

1, Input voltage: 12-24V DC.

2, Stand-by current consumption: max. 8mA.

3, 0-10V DC output signal.

4, Super compact, flexible to be integrated into any suitable fixtures.

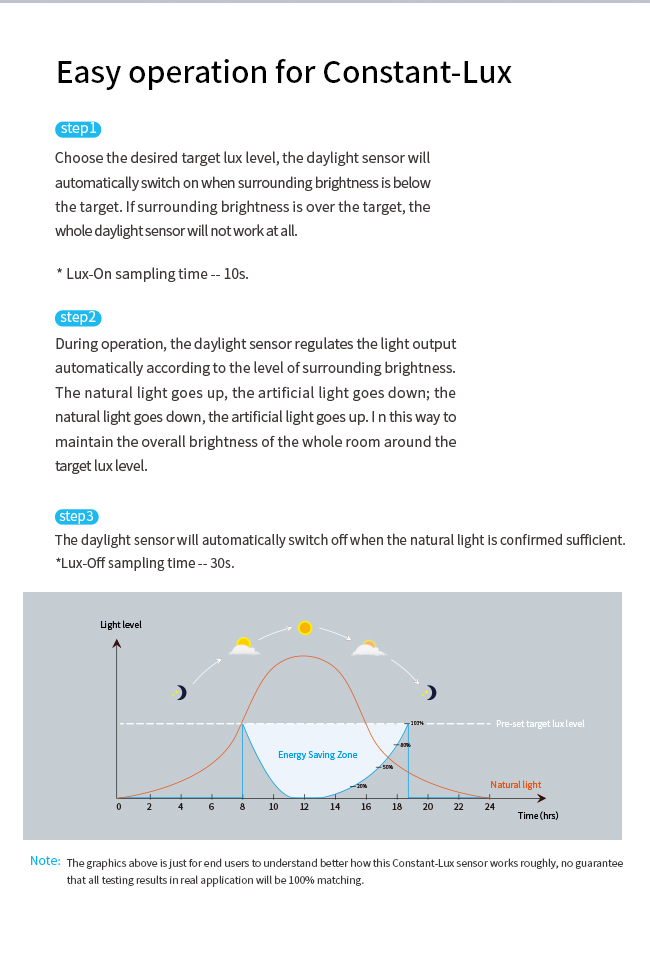

5, Constant-Lux control, ideal for office / commercial lighting.

6, Memory function with One-key commissioning, easy operation and user friendly.

7, IR remote commissioning, easy setting and user friendly.

8, Detection range: max. 6-8m in diameter.

9, Mounting height: max. 4.5m.

10, Operation temperature: -10°c ~ +50°c.

11, IP rating: IP65.

12, RoHS compliant.

Setting:

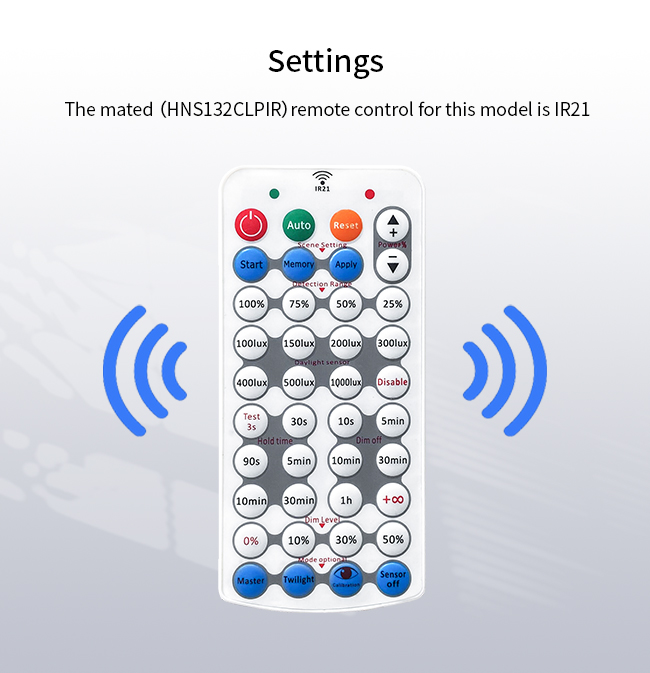

The mated remote control for this model is IR21.

Description of PIR motion sensor and daylight harvesting sensor HNS132CLPIR

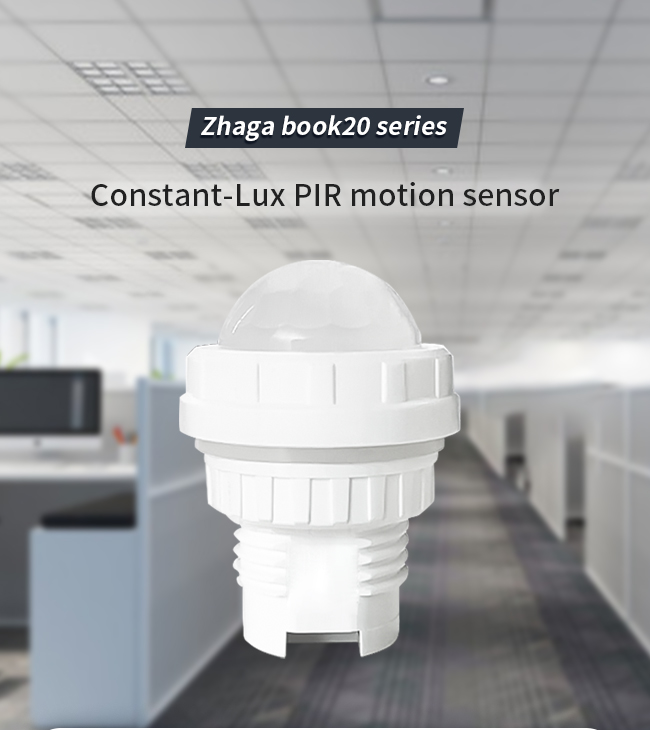

HNS132CLPIR is a Zhaga book20 PIR motion sensor and constant lux sensor, special design for indoor lighting etc.

12V-24V DC input, 0-10v dimming output and constant lux function, settings via remote control.

Remote Control PIR Motion Sensor Zhaga Book20 Constant Lux Sensor

Zhaga book20 series
No.	Series	Controll	Type	Model name	Function
1	Zhaga book20	Single light	PIR+Daylight sensor	HNS132PIR/HNS132CLPIR	12V DC input, 0-10V output, tri-level dimming and daylight monitoring / constant lux function by remote control setting
2		Single light	Daylight sensor	HNP132CL	12V DC input, 0-10V output, constant luxfunction by remote control setting
3		DALI-2 D4i	Daylight sensor+DALI	HNP132CLDL	9.5-22.5V DC, DALI output, constant lux function, remote control and DALI BUS setting
4			PIR+Daylight sensor+DALI	HNS132CLDLPIR	9.5-22.5V DC, DALI output, tri-level dimming and constant lux function, remote control and DALI BUS setting
5			PIR+DALI	HNS132DL	9.5-22.5V DC, DALI output, DALI BUS setting input device
6			PIR+Daylight sensor+DALI	HNS132DLPIR	9.5-22.5V DC, DALI output, tri-level dimming and daylight monitoring function, remote control and DALI BUS setting
7		SILVAIR bluetooth mesh	BLE+PIR+Daylight	HNB132PIR	12V DC input, 0-10V output, tri-level dimming and constant lux function by silvair bluetooth mesh APP control
8		SILVAIR bluetooth mesh+DALI-2 D4i	BLE+DALI+PIR+Daylight	HNB132DLPIR	9.5V-22.5V DC input, DALI output,tri-level dimming and daylight harvest, bluetooth mesh function by silvair bluetooth mesh APP control
9		SILVAIR bluetooth mesh+DALI-2 D4i	DALI Bluetooth mesh converter	HNB132DL	9.5V-22.5V DC input, DALI output, bluetooth mesh function by silvair bluetooth mesh APP control

FAQ:

Q1. Do you have any MOQ limit for motion sensor?

A: Low MOQ, 1pc for sample checking is available.

Q2. How do you ship the motion sensor and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Product Tags:

Remote Control PIR Motion Sensor

Zhaga Book 20 PIR Motion Sensor

Zhaga Book 20 PIR Sensor

Remote Control PIR Motion Sensor Zhaga Book20 Constant Lux Sensor Images
