HNS158DLPIR-C DALI-2 D4i Zhaga Book 18 SYNC Function IP65 Long Range PIR Detector
Model name: HNS158DLPIR-C DALI-2 D4i PIR motion sensor
Quick detail of dali pir sensor HNS158DLPIR-C
1, Zhaga book18 standard receptacle, IP65 waterproof
2, SYNC function, support to group without DALI system
3, Compliant DALI D4i, support for DALI system
4, Self-contained “application controller”.
5, Self-contained DALI-2 bus power supply .
6, Individual adjustment of parameters with configuration software.
7, Daylight harvest function, intelligent photocell to measure and differentiate natural light from LED light
8, SYNC function to achieve condominium function, max. 10 deivces in one group
Description of dali multi sensor
HNS158DLPIR-C uses Zhaga book18 standard receptacle, 12V-24V DC input, dali dimming and daylight harvest
function by remote control and DALI bus setting.

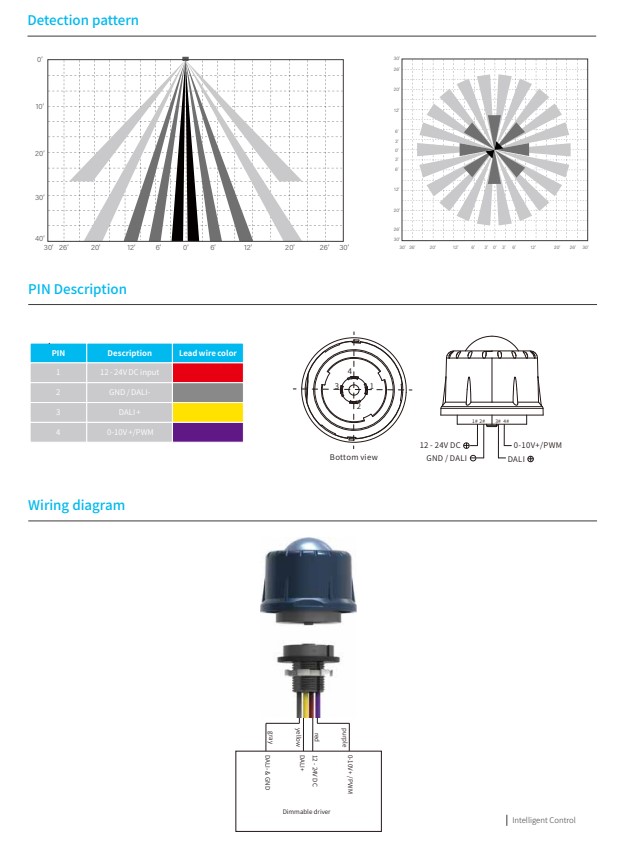

Specification of led PIR sensor
| Small size | ∅57mm, IP65 |
| Input current: | ≥10mA (available for solar light) |
| Mounting height | Max.12m for highbay version |
| Input voltage | 12V-24V DC input |
| Output signal | DALI dimming |
| Operation environment | -20°C~+60°C |
Settings (via Remote control IR21)
Master button: Press “Master” button, users can choose any sensor in the DALI loop to work as the master, then the
daylight harvest function of the whole loop will work based on this specific master.
Twilight button: Press “Twilight” button, this sensor will work as a pure daylight sensor only, no more motion detection.
* when works as a pure daylight sensor, the daylight harvest function is still available.
* press “Reset”, “Auto”, “ON/OFF” or “Sensor off” buttons to quit this mode.
Paremeters setting (via DALI Bus)
Users can set desired sensor paremeters with standard DALI instances.
(Please find HNS158DLPIR-C instances and values in Memory Bank 2, location: 0x3 ).
DALI-2 & D4i standards
EN62386-101 Ed.2
EN62386-103 Ed.1
EN62386-351 Type A
| Hynall Zhaga book18 series product list |
| Product | Daylight | Motion | Remark |
| On/off | Daylight monitoring | Daylight harvest |
| HNP152 | ✓ | | | | 0/10V high low output |
| HNP152V | ✓ | ✓ | | | 0-10V output |
| HNP152DH | | | ✓ | | 0-10V output |
| HNS151HB-A | | ✓ | | ✓ | 0-10V output |
| HNS151DHB | | | ✓ | ✓ | 0-10V output |
| HNS157PIR | | ✓ | | ✓ | 0-10V output |
| HNS158PIR | | | ✓ | ✓ | 0-10V output |
| HNS155DL | | | | ✓ | DALI-2 D4i |
| HNS153DL | | ✓ | | ✓ | DALI-2 D4i |
| HNS154DL | | | ✓ | ✓ | DALI-2 D4i |
| HNS153DL-C | | ✓ | | ✓ | DALI-2 D4i |
| HNS154DL-C | | | ✓ | ✓ | DALI-2 D4i |
| HNS155DLPIR | | | | ✓ | DALI-2 D4i |
| HNS157DLPIR | | ✓ | | ✓ | DALI-2 D4i |
| HNS158DLPIR | | | ✓ | ✓ | DALI-2 D4i |
| HNS157DLPIR-C | | ✓ | | ✓ | DALI-2 D4i |
| HNS158DLPIR-C | | | ✓ | ✓ | DALI-2 D4i |
| HNB156MW | | | ✓ | ✓ | MW+BLE |
| HNB156 | converter | BLE |
| HNB158PIR | | | ✓ | ✓ | PIR+BLE |
| HND150V/D | AC input, matching all of motion sensor head and converter of Zhaga book18 series |
